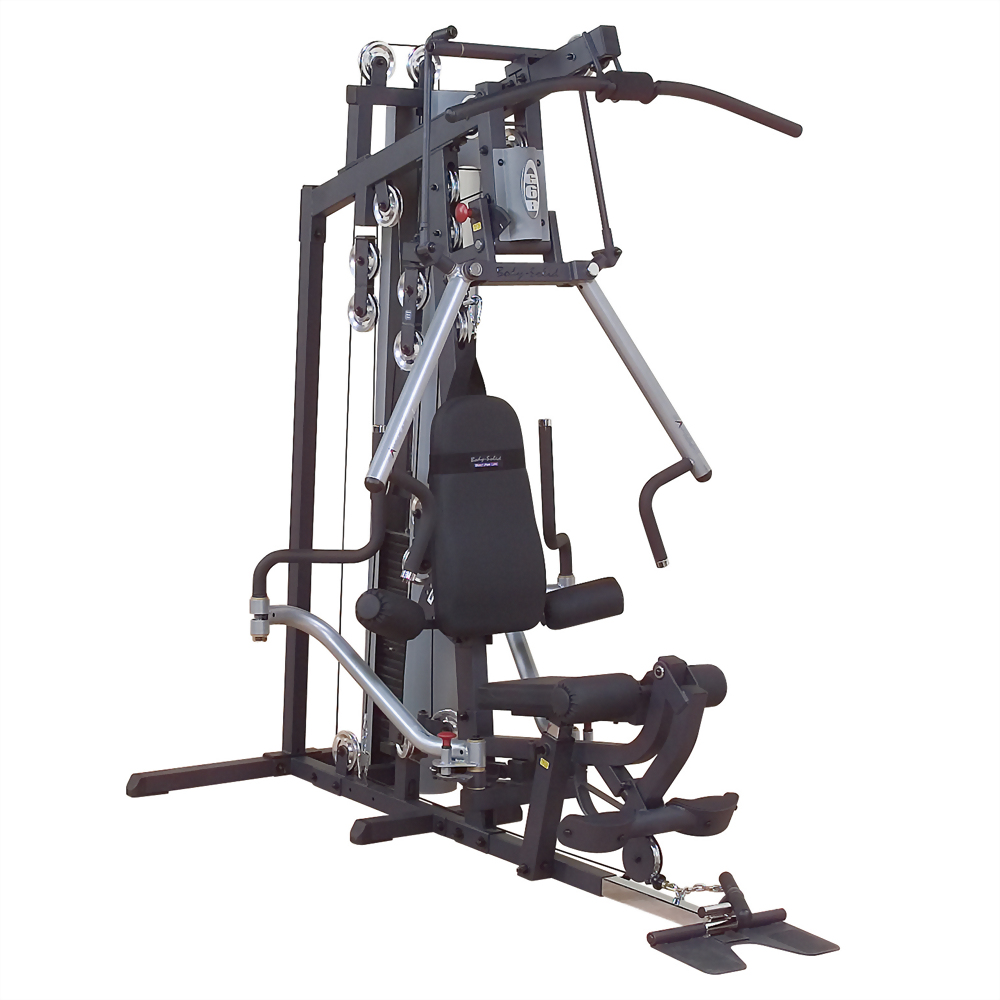

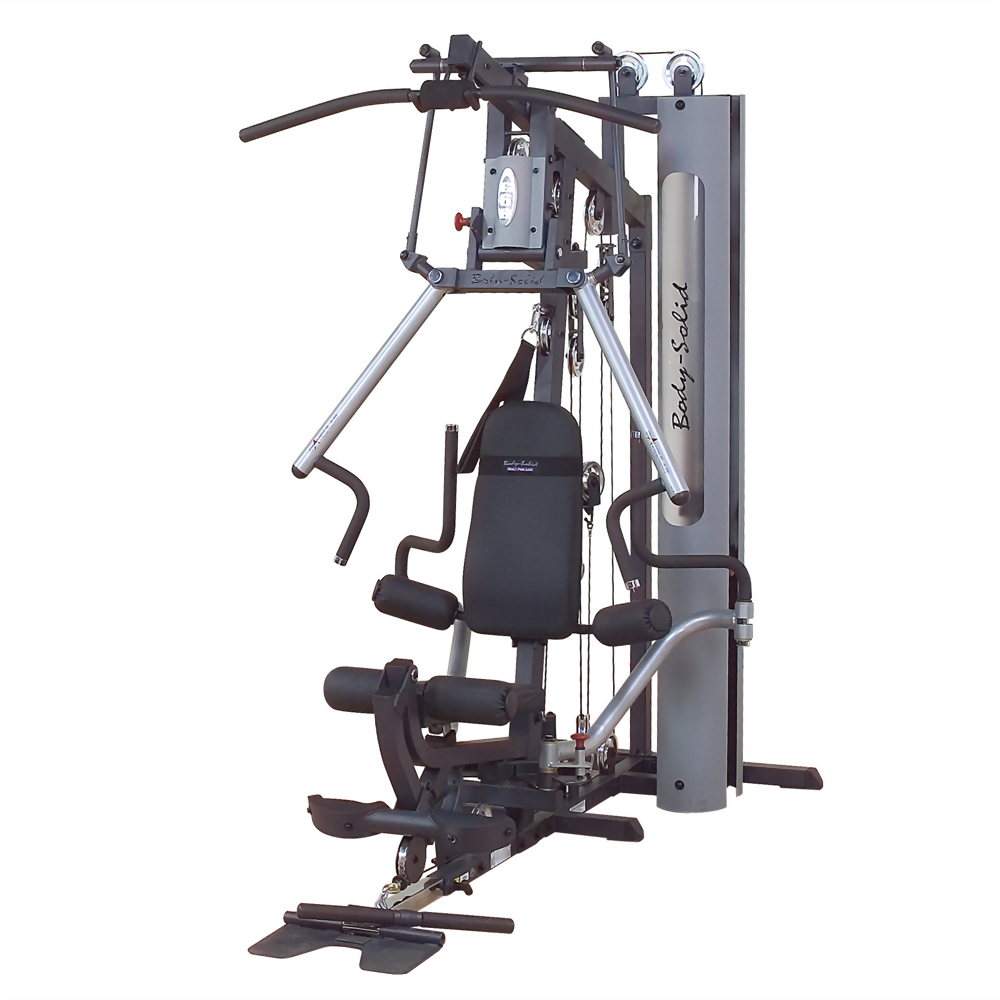

The Body-Solid G6B Bi-Angular Multi-Station Gym is a high-performance gym system engineered to deliver a superior range of motion and professional-grade durability.

At the heart of the G6B is the patented Bi-Angular® Press Arm technology. This system guides users through a natural, convergent path of motion, applying resistance from two directions simultaneously.

By eliminating "dead zones" where muscles typically rest, this multi-directional resistance system produces 25% more muscle interaction. The result is a higher-intensity workout through safe, multi-joint, and multi-plane movement patterns.

Key Specialized Stations

• Perfect Pec™ Station: Featuring a dual-cam design with variable resistance, this station allows for both unilateral and bilateral movements. Equipped with swivel arms, it ensures a maximum stretch for deep muscle toning and peak upper-body development.
• Precision Leg Developer: Driven by the SmoothGlide Bearing System™, this station uses a biomechanically accurate pivot point. The Integrated Leg Developer CAM prevents resistance drop-off at the end of the stroke, while self-aligning, contoured cuffs adjust automatically throughout movement.
• Versatile Pulley System: High, Mid, and Low pulleys support a massive range of exercises, from Lat Pulldowns and Ab Crunches to Bicep Curls and Lateral Deltoid Raises.

Industrial-Grade Construction

• Heavy-Duty Frame: Built with 12-gauge high-tensile steel for ultimate structural integrity.
• Advanced Finish: An electrostatically applied powder coat protects against scratching, chipping, and peeling.
• Military-Spec Cables: 2,200 lb. tension strength steel aircraft cables with a protective nylon sheath for low maintenance and high safety.
• Precision Pulleys: 4½" impact-resistant fiberglass-reinforced nylon pulleys with precision-machined steel ball bearings.
• Friction-Free Movement: All stations feature self-lubricating bronze bushings with biomechanically accurate pivot points.

Ergonomics & Comfort

• DuraFirm™ Padding: Extra-thick pads with dedicated lumbar support provide maximum comfort and prevent lower back strain during heavy lifts.
• Gas-Assisted Adjustments: The telescoping, chrome-plated seat post adjusts smoothly to ensure proper body positioning for users of all heights.
• User-Friendly Design: A no-cable-change system allows users to transition between exercises instantly, saving time and maintaining their heart rate.

Product Specifications

• Weight Stack: 210 lbs. (Upgradable to 260 lbs.)
• Dimensions: 84" L x 58" W x 84" H
• Live Working Area: 85" L x 84" W x 84" H
• Unit Weight: 547 lbs.
• Included Accessories: Lat Bar, Straight Bar, Ankle Strap, Ab/Triceps Strap, Total Body Workout™ DVD, and a full-size exercise chart.

Available Upgrades & Attachments

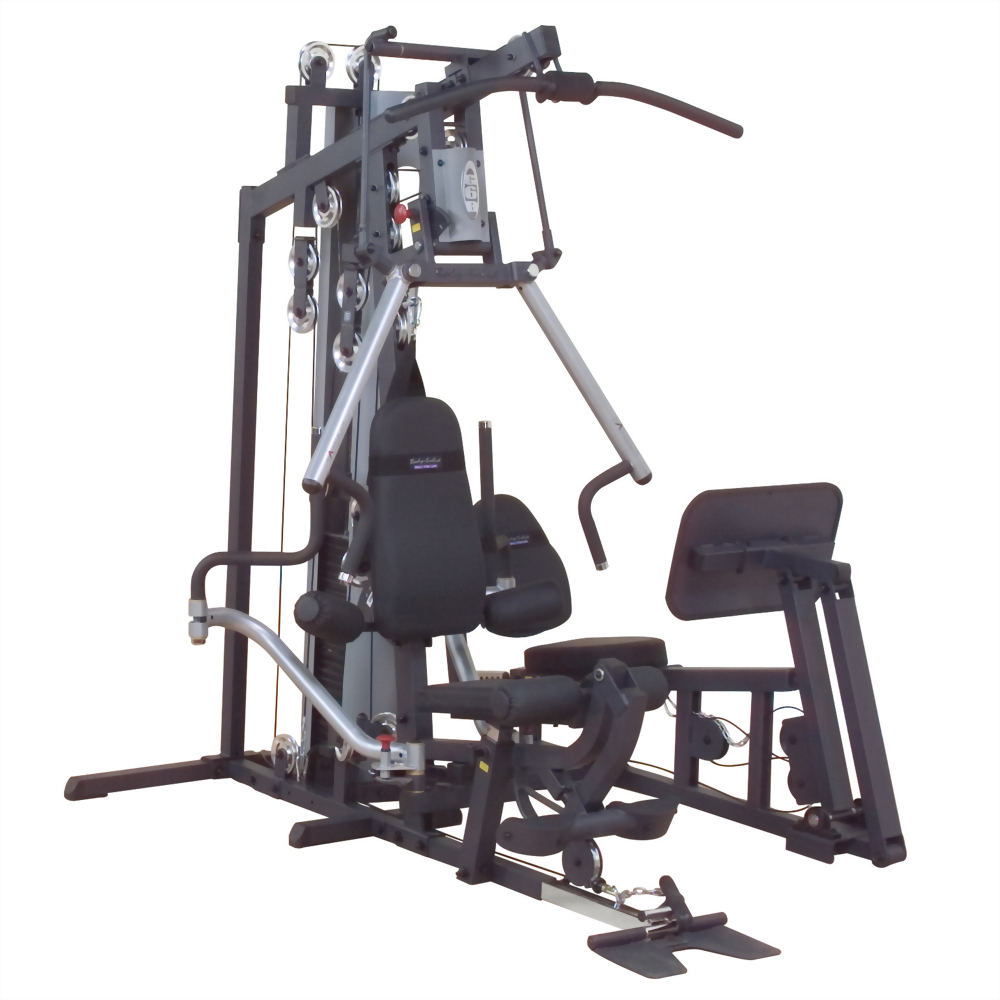

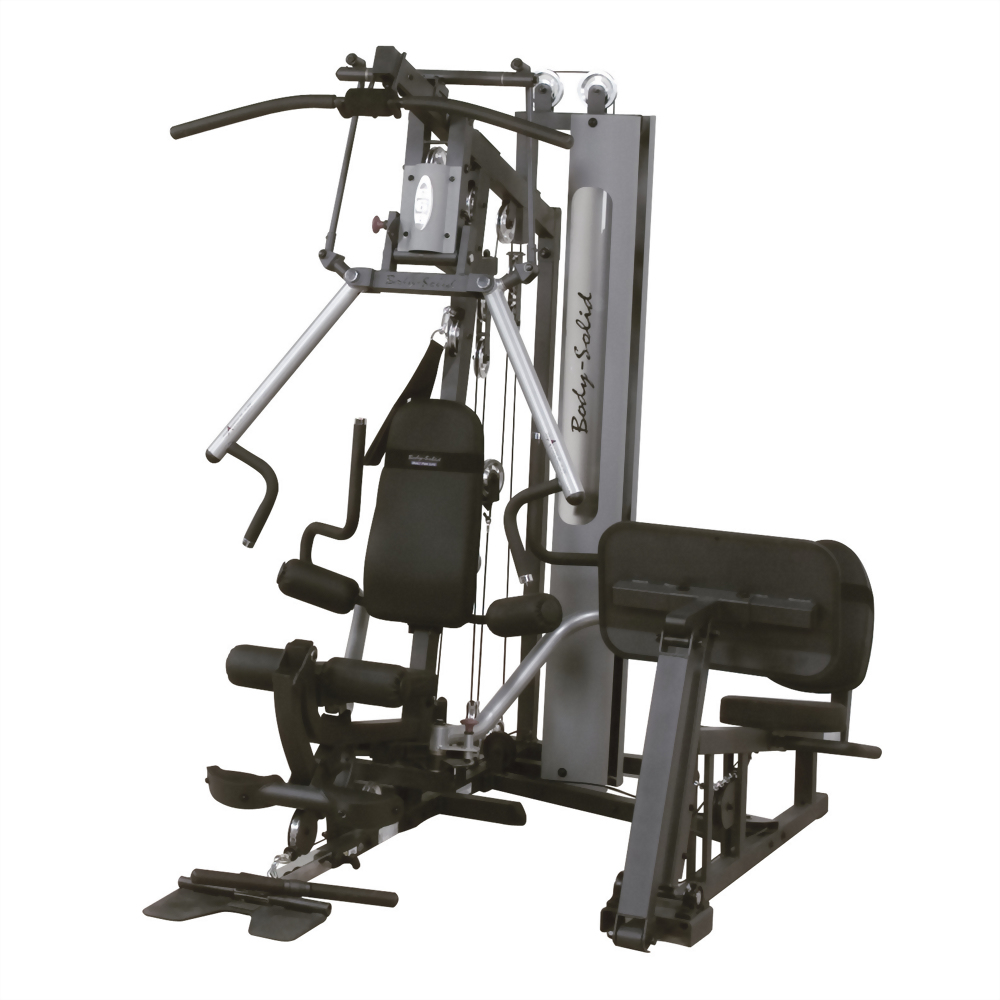

• Optional Leg Press / Calf Press Attachment (Sold Separately)
• Optional Inner / Outer Thigh Attachment (Sold Separately)
• Aluminum Pulley Kits (Optional)

Note: The G6B has space for one side-attachment at a time (either the Leg Press or the Inner/Outer Thigh station).

Exercise Breakdown by Station

• Press Arm: Chest Press, Chest Mid-Row, Back Hyperextension, Incline Press.
• High Pulley: Lat Pulldown, Triceps Pressdown.
• Mid Pulley: Resistance Ab Crunch, Triceps Extension, Lateral Fly.
• Low Pulley: Biceps Curl, Seated Row, Oblique Bend, Leg Adduction/Abduction, Upright Row.
• Leg Developer: Leg Extension, Leg Curl.
